DIESEL

398-ed

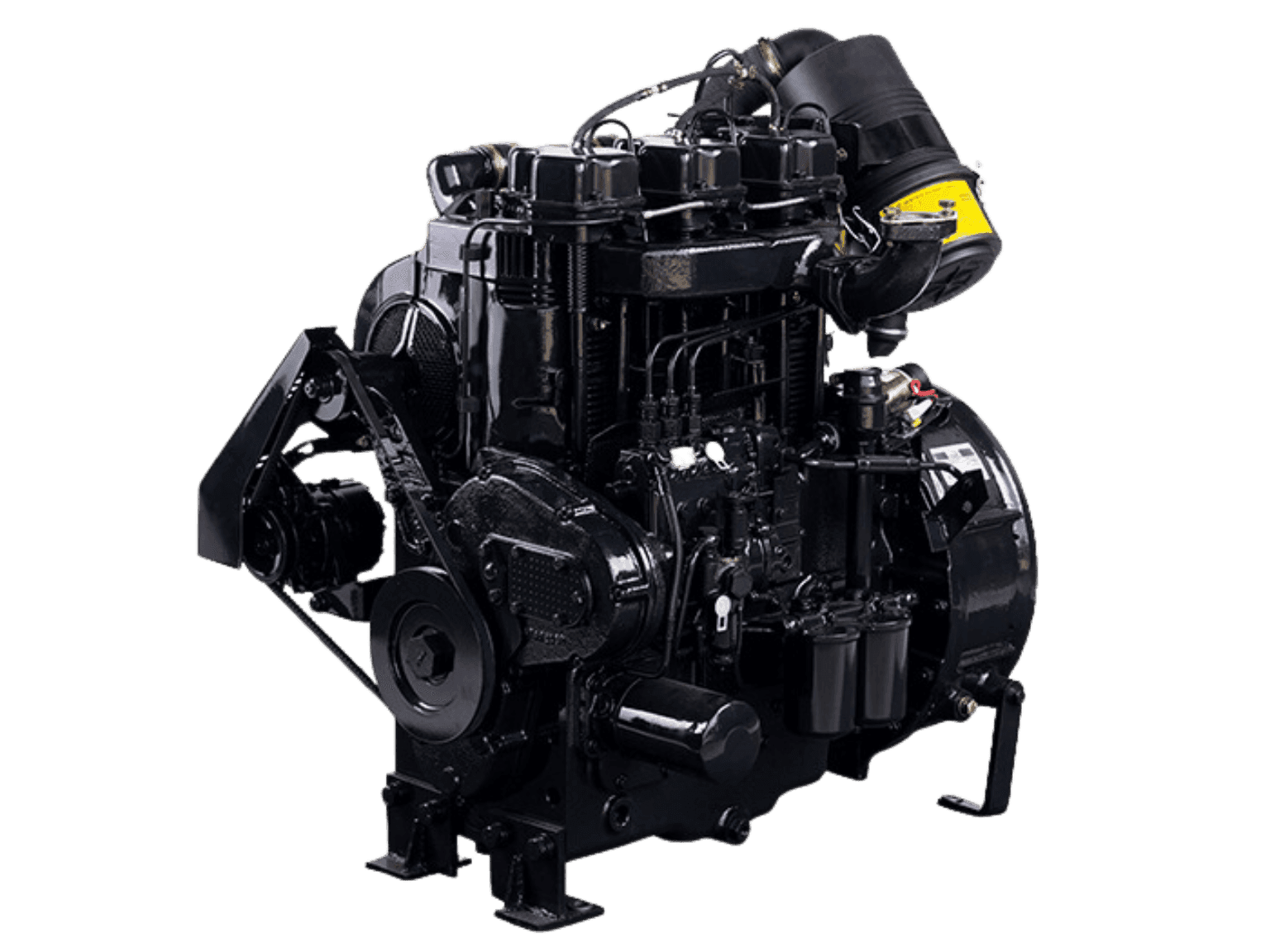

This 3-cylinder, air-cooled industrial engine delivers an impressive 43 horsepower at 2150 rpm, making it ideal for a wide range of demanding variable-speed applications. With a bore of 100 mm and a stroke of 125 mm, it’s engineered for optimal efficiency and durability, ensuring reliable performance in the toughest industrial environments. The naturally aspirated design enhances airflow and fuel combustion, providing smooth and consistent power output. Boasting a maximum torque of 161 Nm, this engine is capable of handling heavy-duty tasks with ease. The air-cooled system simplifies maintenance, eliminating the need for liquid cooling and making it a dependable option for remote or rugged conditions. With a focus on fuel efficiency and long operational life, this engine is a cost-effective and versatile solution for industries requiring powerful, variable-speed equipment.

Download Brochure

SPECIFICATIONS

Select up to 3 models to compare specifications

398 ED

Specifications
398 ED

Technical Specification

Cooling
Air cooled
Cylinders
3
Bore
100 mm
Stroke
125 mm
Horsepower
43 hp
Engine rpm
2150 rpm
Aspiration
Naturally Aspirated
MaximumTorque
161 Nm
Dry Weight
370 kg
Dimensions Length
780 mm
Dimensions Width
703 mm
Dimensions Height (Without Silencer)
880 mm
Dimensions Height (With Silencer)
-
HP @1500rpm
-
HP @1800rpm
-
HP @2000rpm
-
HP @2200rpm
-
Starting
-
Aspiration Type
-
