DIESEL

398-e49

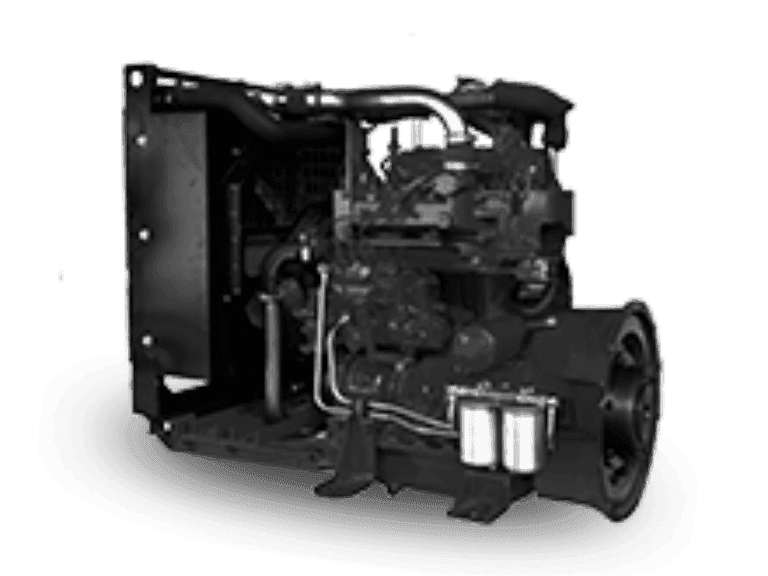

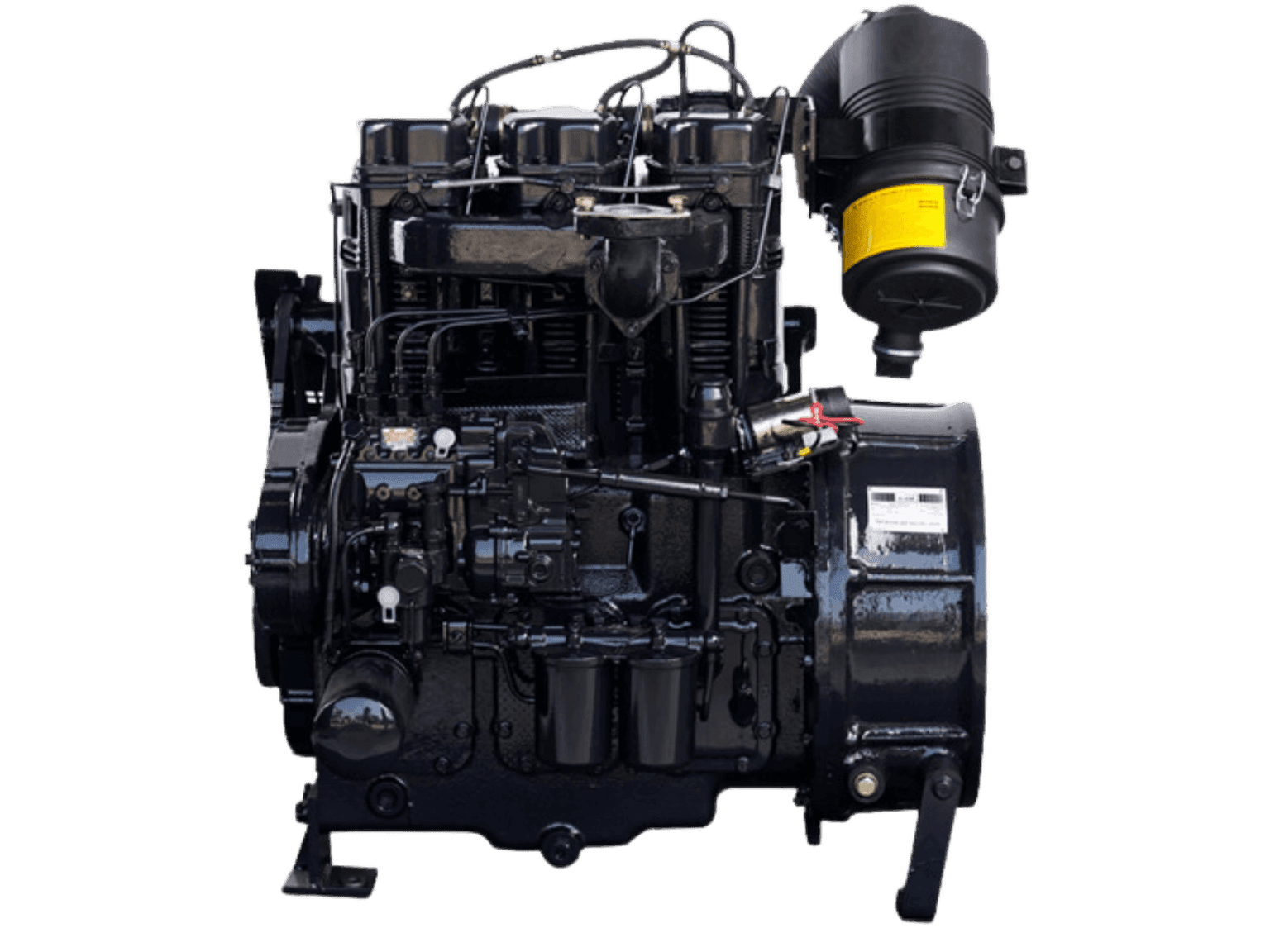

This 3-cylinder, air-cooled industrial engine delivers a robust 49 horsepower at 2150 rpm, providing the power and performance needed for variable-speed industrial applications. With a bore of 100 mm and a stroke of 125 mm, it’s engineered for efficiency and reliability, ensuring smooth operation under heavy workloads. The naturally aspirated design enhances fuel efficiency and power output, while the maximum torque of 187 Nm allows the engine to handle demanding tasks across industries. The air-cooled system eliminates the need for complex liquid cooling, making this engine easier to maintain and ideal for use in rugged or remote locations. Built for durability and long-term efficiency, this engine is a perfect fit for industrial operations requiring a powerful, variable-speed solution that offers low maintenance and excellent fuel economy.

Download Brochure

SPECIFICATIONS

Select up to 3 models to compare specifications

398 E49

Specifications
398 E49

Technical Specification

Cooling
Air cooled
Cylinders
3
Bore
100 mm
Stroke
125 mm
Horsepower
49 hp
Engine rpm
2150 rpm
Aspiration
Naturally Aspirated
MaximumTorque
187 Nm
Dry Weight
370 kg
Dimensions Length
780 mm
Dimensions Width
703 mm
Dimensions Height (Without Silencer)
880 mm
Dimensions Height (With Silencer)
-
HP @1500rpm
-
HP @1800rpm
-
HP @2000rpm
-
HP @2200rpm
-
Starting
-
Aspiration Type
-
