DIESEL
422-tc

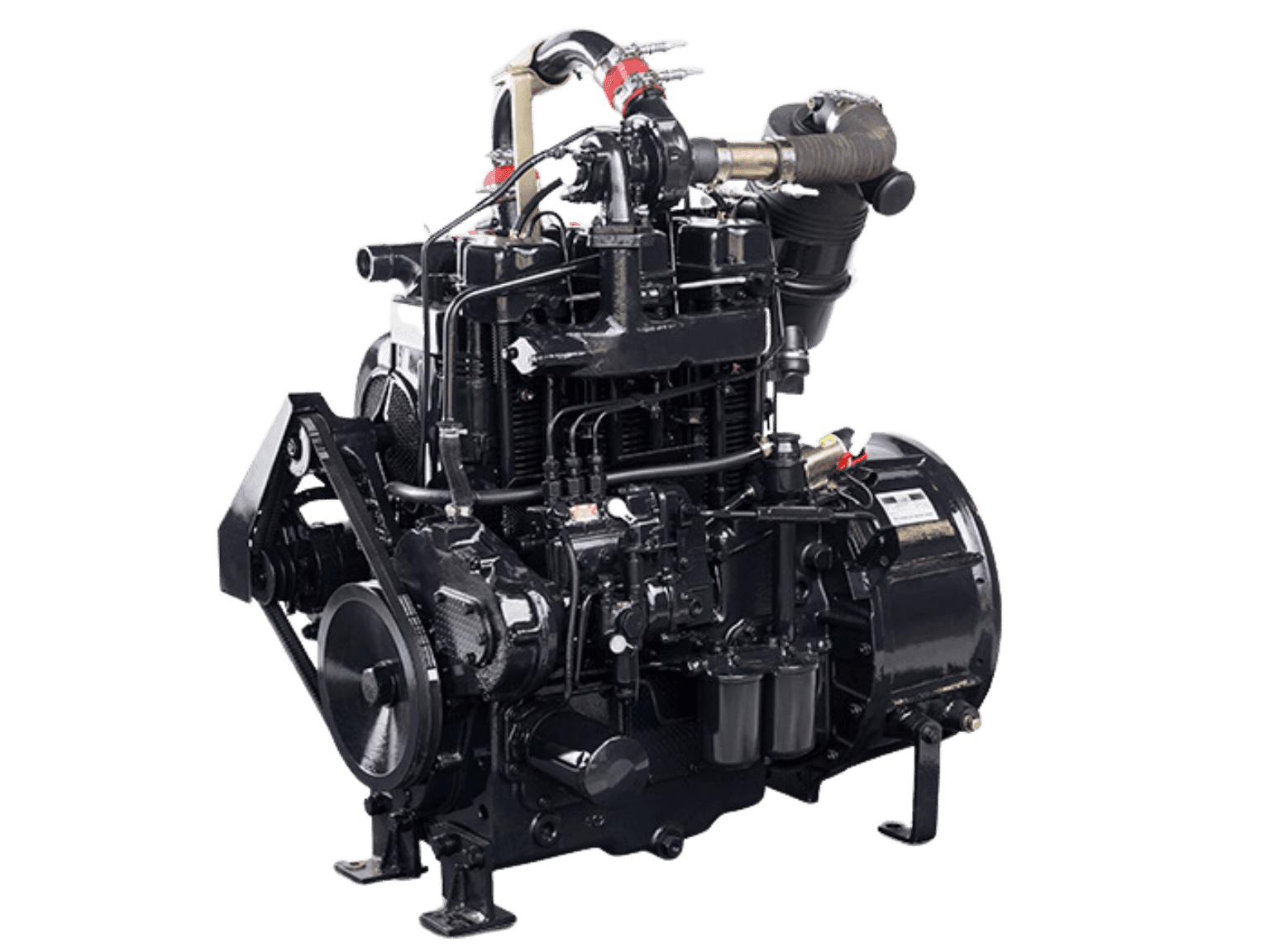

This 3-cylinder, air-cooled industrial engine delivers robust power, providing 46 horsepower at 1500 rpm and 56 horsepower at 1800 rpm. With a bore of 100 mm and a stroke of 125 mm, the engine is built to handle fixed-speed industrial applications that require consistent, efficient performance. The turbocharged aspiration enhances power output and fuel efficiency, ensuring reliable operation in demanding environments. Ideal for various industrial sectors, this engine is designed for long-term durability and low maintenance. Its ability to deliver steady power makes it a cost-effective solution for fixed-speed industrial operations.

SPECIFICATIONS

Select up to 3 models to compare specifications
422 TC
Specifications
422 TC
Technical Specification
Cooling
Air cooled
Cylinders
3
Bore
100 mm
Stroke
125 mm
Horsepower
-
Engine rpm
-
Aspiration
Turbocharged
MaximumTorque
-
Dry Weight
480 kg
Dimensions Length
855 mm
Dimensions Width
714 mm
Dimensions Height (Without Silencer)
1108 mm
Dimensions Height (With Silencer)
-
HP @1500rpm
46 hp
HP @1800rpm
56 hp
HP @2000rpm
-
HP @2200rpm
-
Starting
-
Aspiration Type
-
